• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 364024

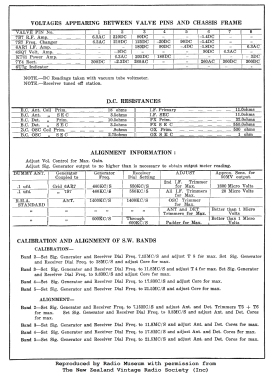

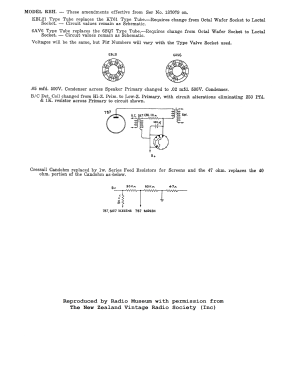

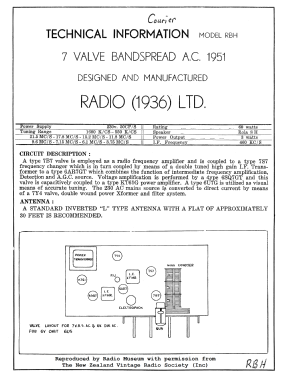

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 7B7 7S7 6AR7GT 6SQ7 6U5 KT61 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Drummond RBH [Mantel] - Ultimate Brand, Radio Ltd. &

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 24 x 13.25 x 11 inch / 610 x 337 x 279 mm

• Notes

• Ultimate RBH Drummond

  7-valve (including magic eye) 5-band, bandspread superhet with RF stage mantel receiver. £53/7/6.

• Price in first year of sale
• 53.38 NZ £

• Mentioned in
• -- Original prospect or advert (Marlborough Express 25 September 1952 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
