• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1958 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 170578

• Number of Tubes
• 2

• Valves / Tubes

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

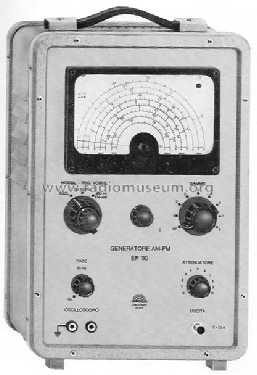

• Model: Generatore AM-FM EP110 R - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 420 x 170 x 220 mm / 16.5 x 6.7 x 8.7 inch

• Notes
• Two double triodes, types unknown. Frequency from 150 kHz to 110 MHz in 8 ranges, FM only from 6 to 110 MHz, output impedance 75 ohms, audio frequency 400 Hz, AM modulation only from 150KHz to 40 MHz.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
