Megaciclimetro EP-516

Megaciclimetro EP-516; Unaohm Start s.r.l. (ID = 702799) Equipment

Megaciclimetro EP-516; Unaohm Start s.r.l. (ID = 702788) Equipment
Megaciclimetro EP-516; Unaohm Start s.r.l. (ID = 702789) Equipment
Use red slider bar for more.
Megaciclimetro EP-516; Unaohm Start s.r.l. (ID = 702789) Equipment
Unaohm Start s.r.l.: Megaciclimetro EP-516 [Equipment] ID = 702789 660x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Megaciclimetro EP-516, Unaohm Start s.r.l. (Ohm - ing. Pontremoli); Milano:

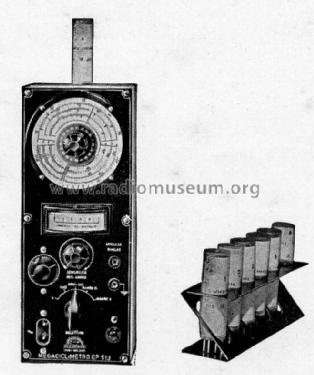

Foto taken from manufacturer´s manual

Country:  Italy
Manufacturer / Brand:  Unaohm Start s.r.l. (Ohm - ing. Pontremoli); Milano
Year: 1958 ?? Category: Service- or Lab Equipment
Valves / Tubes 1: 6J6
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-280 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Megaciclimetro EP-516 - Unaohm Start s.r.l. Ohm - ing.
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 105 x 80 mm / 10.2 x 4.1 x 3.1 inch
Notes Dip-meter, oscillator at variable frequency from 2 to 300 MHz with 8 interchangeable coils and one 100 micro amp. galvanometer. Can be selected frequency, sensibility and number of bars,mode-ondameter, grid-dip, horiz. bars, vert. bars.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
