• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1964 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 186655

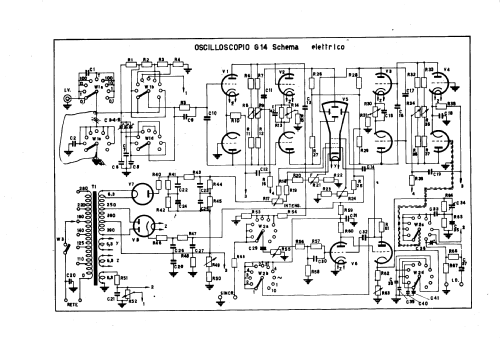

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AT7 12AT7 12AU7 12AU7 12AU7 6X4 EY86 3BP1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-280 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscopio G14 - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 110 x 220 x 310 mm / 4.3 x 8.7 x 12.2 inch

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Manuale: Descrizione e istruzioni per l'uso

Unaohm G14 Descrizione e istruzioni per l'uso

2793 KB

• Documents regarding this model

• Author
• Model page created by Biagio Laureti. See "Data change" for further contributors.
