• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 258828

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 34

• Valves / Tubes

• Number of Transistors
• 34

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

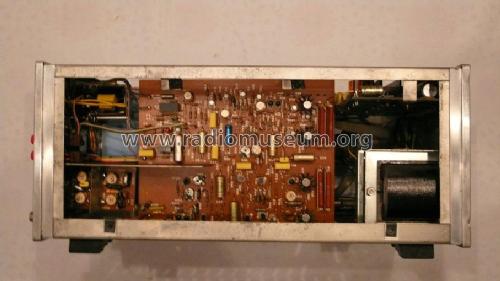

• Model: Oscilloscopio G470 BL - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 255 x 175 x 480 mm / 10 x 6.9 x 18.9 inch

• Notes

• SINGOLA TRACCIA 0-10MHz.

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Author
• Model page created by Gilberto Verrini. See "Data change" for further contributors.
