• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111094

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 6E5GT 6X5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

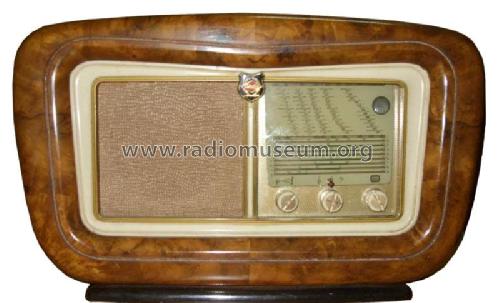

• Model: R69/3 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 330 x 190 mm / 22 x 13 x 7.5 inch

• Notes
• 9 bande allargate.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Guida Pratica Antique Radio V

• Author
• Model page created by Marino Ciullo. See "Data change" for further contributors.
