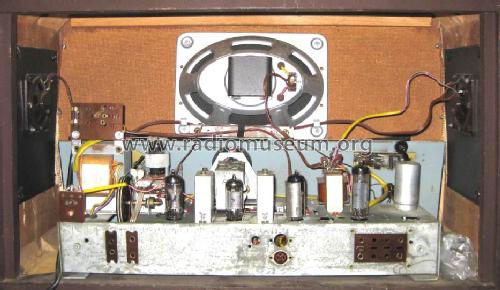

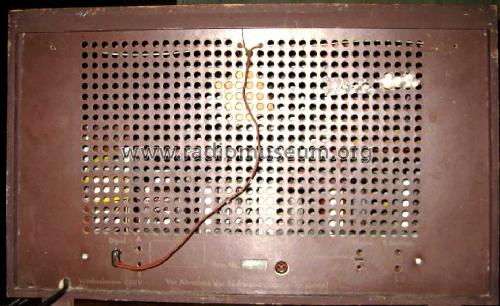

Union-Ring e.V.;: Union unbekannt [Radio] ID = 755716 933x557
Select picture or schematic to display from thumbnails on the right and click for download.
For model Union unbekannt, Union-Ring e.V.; Hamburg:
Union W61 Gerät ist nicht mehr in meinem Besitz.

Country:  Germany
Manufacturer / Brand:  Union-Ring e.V.; Hamburg
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117; 220; 240 Volt
Loudspeaker 3 Loudspeakers / Ø 20 cm = 7.9 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Union unbekannt - Union-Ring e.V.; Hamburg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 584 x 357 x 235 mm / 23 x 14.1 x 9.3 inch
Notes Herstellung: Kaiser KG für Union-Ring e.V.
2 elektrostatische Hochtonlautsprecher seitlich.
Source of data - - Data from my own collection

Model page created by Marc Gianella. See "Data change" for further contributors.
