Aitron Magicsound Magic-Ring AIE-941

• Country
• Hong Kong

• Manufacturer / Brand
• Aitron (brand), Asia International Electronics, Ltd (AIE); Hong Kong

• Year
• 1974 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158881

• Picture
• Schematics

Previous Next

Previous Next

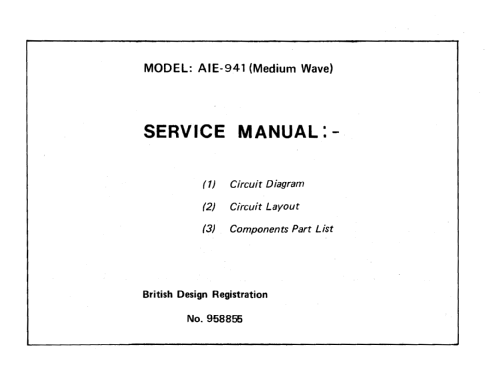

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• unknown_tr_NPN 2SB176 2SB176

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 1 x 1,5 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Aitron Magicsound Magic-Ring AIE-941 - Aitron brand, Asia

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 102.5 x 30 x 0 mm / 4 x 1.2 x 0 inch

• Notes

• 6 Transistors - 1 Biasing (Limiter) Diode - 1 Detector Diode.

  The Model AIE-941 is also known under the brand name Emperor ( manufacturer ) and Gran Prix (for the U.S. market). Aitron brand items are made by Emperor, HKG

  See also model Suliza's AIE-914

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 9 models, 7 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Aitron (brand), Asia International Electronics, Ltd (AIE); Hong Kong
