• Country
• Belgium

• Manufacturer / Brand
• Unknown - CUSTOM BUILT; Belgium

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79566

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM11 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Inconnu - Unknown 1 - Unknown - CUSTOM BUILT;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 600 x 480 x 410 mm / 23.6 x 18.9 x 16.1 inch

• Notes

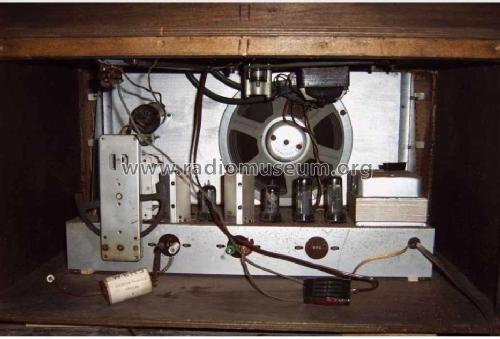

• Loudspeaker & output transformer of brand Goodmans. The record changer is a Garrard type RC72A. All tubes branded Telefunken. A model clearly intended for the Belgian market since all Belgian regional radio stations are indicated on the station scale.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Author
• Model page created by Walter Van Brussel. See "Data change" for further contributors.
