Beach Boy Transistor AM/FM 541.526

Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 424306) Radio Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 424307) Radio
Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 424308) Radio Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686243) Radio
Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686244) Radio Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686246) Radio
Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686247) Radio Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686248) Radio
Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686249) Radio Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 686250) Radio
Use red slider bar for more.

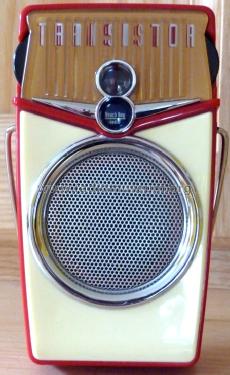

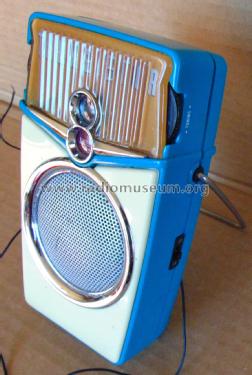

Beach Boy Transistor AM/FM 541.526; Unknown - CUSTOM (ID = 424306) Radio
Unknown - CUSTOM: Beach Boy Transistor AM/FM 541.526 [Radio] ID = 424306 626x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beach Boy Transistor AM/FM 541.526, Unknown - CUSTOM BUILT: China

Country:  People's Republic of China
Manufacturer / Brand:  Unknown - CUSTOM BUILT: China
Year: 1998 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. KA22425
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Beach Boy Transistor AM/FM 541.526 - Unknown - CUSTOM BUILT: China
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 130 x 30 mm / 2.8 x 5.1 x 1.2 inch
Notes

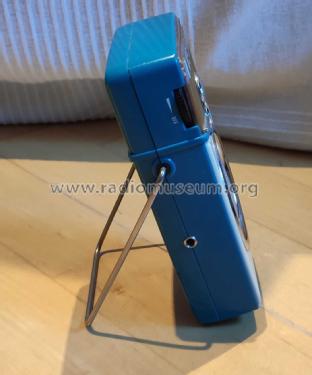

Beach Boy AM/FM Radio Art. Nr. 541.526. AM/FM-Portable mit Aufstellbügel, Kopfhöreranschluß über 3,5 mm Klinkenbuchse.

Frequenzbereiche: FM 87,5 - 108,5 MHz, AM 525 - 1730 kHz, eingebaute Rahmenantenne für UKW, Ferritantenne 5,5 cm für MW.

Die Gestaltung des Modells orientiert sich laut Verpackung an die Zeit der 1960er Jahre: "Summer Nostalgia from the Sixties". Ein ähnliches Design hatte z.B. das Modell Realtone Comet TR-1088 von etwa 1959. Ein identisch aussehendes Radio aus dieser Zeit gab es jedoch nicht, es handelt sich demnach nicht um eine Replik eines früheren Originals.

Siehe auch Beach Boy Transistor FM Art. Nr. 541.522.

Similar to the models reported under Philco Transitone.

Made in China

Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)
Collectors' prices

Model page created by Johann Nussbaum. See "Data change" for further contributors.
