Monarch (Wedge)

Monarch ; Unknown - CUSTOM (ID = 2008872) Radio Monarch ; Unknown - CUSTOM (ID = 2008873) Radio
Monarch ; Unknown - CUSTOM (ID = 2008874) Radio Monarch ; Unknown - CUSTOM (ID = 2008875) Radio
Use red slider bar for more.
Monarch ; Unknown - CUSTOM (ID = 2008872) Radio
Unknown - CUSTOM: Monarch [Radio] ID = 2008872 1400x1118
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monarch (Wedge), Unknown - CUSTOM BUILT: Japan

Country:  Japan
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Japan
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12AV6 12BD6 12BE6 35W4 50C5

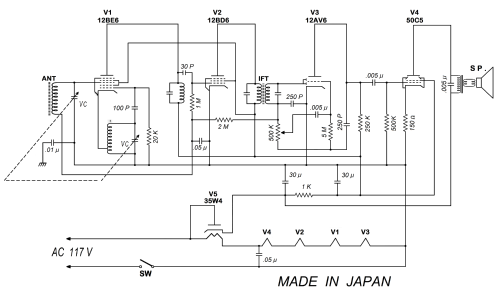

schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out
from Radiomuseum.org Model: Monarch - Unknown - CUSTOM BUILT: Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 165 x 113 x 110 mm / 6.5 x 4.4 x 4.3 inch
Notes

See Essex (Wedge) and Olson RA-323 for schematics and alignment instructions.

Model page created by David Erali. See "Data change" for further contributors.
