Hi-Fi 10 Transistors 101

Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 2364396) Radio Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 2364397) Radio
Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 2364398) Radio Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 2364399) Radio
Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1174450) Radio Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1022918) Radio
Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1022917) Radio Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1022919) Radio
Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1022920) Radio Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 1174453) Radio
Use red slider bar for more.
Hi-Fi 10 Transistors 101; Nipco Mfg. Co., Ltd. (ID = 2364396) Radio
Nipco Mfg. Co., Ltd.: Hi-Fi 10 Transistors 101 [Radio] ID = 2364396 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi 10 Transistors 101, Nipco Mfg. Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Nipco Mfg. Co., Ltd.; Tokyo
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2S52 2S52 2S53 2S40 2S54 2S54 2S34 2S34 2S56 2S56 1N60
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x AA 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hi-Fi 10 Transistors 101 - Nipco Mfg. Co., Ltd.; Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.75 x 3.5 x 1.375 inch / 146 x 89 x 35 mm
Notes

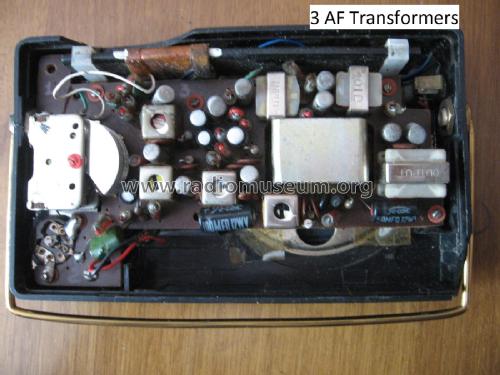

The circuit label of the 10 transistor sets (Nipco and similars) always show three AF transformers (see picture ID = 2364399), but in few sets (probably the earliers) there are really three (see picture ID = 2364398).  Typically there are only two (see for example picture ID = 2364397).

At the end of this page starts the forum with the links to the unlinked models.

Very similar to Omsco, Afco, International, Metro 10, Pacific, Viscount, Alben, Omscolite, Knox, Barton, Royal, Minerva, L.I.C., Mellow-Tone, Spesco, Encore, Valiant, Cambridge, Browni, Nipco 8.

Similar to Tarleton 8, Tarleton 10, Lanport 10, Metro 8, Bestone 10, Impex 8, Roger 8, Roxy 10, Rubytone 8, Strauss 7, Barton 8, Minerva 8, Monarch 8, Nipco 8, Pacific 8, Bali Hi8Fi, 808 Hi8Fi.

Somewhat similar to the "Jet Wing" models listed under Nipco 8 Transistors.

Zephyr/Global could be involved in the manufacture of this huge series of radios (see the notes reported under Zephyr TR-64).

Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.57, ottobre 2003, pag. 53)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Nipco Mfg. Co., Ltd.; Tokyo
Here you find 15 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Nipco Mfg. Co., Ltd.: Hi-Fi 10 Transistors 101
Threads: 1 | Posts: 1
Hits: 259     Replies: 0
nipco: Models similar to Nipco Hi-Fi 10 Transistors 101
Aldo Andreani
11.May.20
  1

Nipco Hi-Fi 10 Transistors 101 is:

Very similar to Omsco, Afco, International, Metro 10, Pacific, Viscount, Alben, Omscolite, Knox, Barton, Royal, Minerva, L.I.C., Mellow-Tone, Spesco, Encore, Valiant, Cambridge, Browni.

Similar to Tarleton 8, Tarleton 10, Lanport 10, Metro 8, Bestone 10, Impex 8, Roger 8, Roxy 10, Rubytone 8, Strauss 7, Barton 8, Minerva 8.

Somewhat similar to the "Jet Wing" models listed under Nipco 8 Transistors.

Zephyr/Global could be involved in the manufacture of this huge series of radios (see the notes reported under Zephyr TR-64).
