Talking Radio On Air CL-CD259

Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 788177) Radio Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749658) Radio
Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749659) Radio Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749660) Radio
Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749661) Radio Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749662) Radio
Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749663) Radio Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 1749665) Radio
Use red slider bar for more.
Talking Radio On Air CL-CD259; Unknown - CUSTOM (ID = 788177) Radio

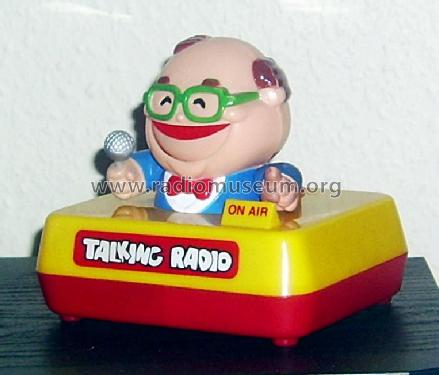

Unknown - CUSTOM: Talking Radio On Air CL-CD259 [Radio] ID = 788177 764x652
Select picture or schematic to display from thumbnails on the right and click for download.
For model Talking Radio On Air CL-CD259, Unknown - CUSTOM BUILT: Taiwan (RC)

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Unknown - CUSTOM BUILT: Taiwan (RC)
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / UM3: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Talking Radio On Air CL-CD259 - Unknown - CUSTOM BUILT: Taiwan
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 125 x 110 x 95 mm / 4.9 x 4.3 x 3.7 inch
Notes

Talking Radio On Air, AM radio in the later version featuring: Man´s mouth moving corresponding to the sound of the radio or through sockets at the back connected to speaker, mic, tape recorder or headphone. Another version is available in FM only.  Gross weight incl original packing 380 gram. Patent-No. 22597.

See also similar model Talking Radio Music Man.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
