Vienna-International-Airport

Unknown - CUSTOM BUILT: China

  • Year
  • 1999 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 206587

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Vienna-International-Airport - Unknown - CUSTOM BUILT: China
  • Shape

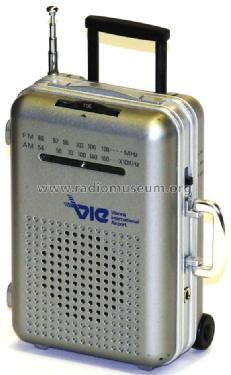

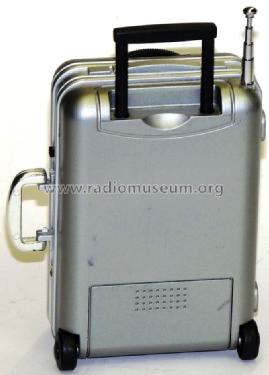

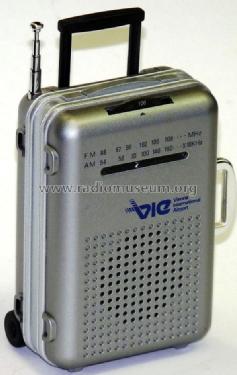

  • Design Radio or Novelty / Gadget - fancy or unusual shape.
  • Dimensions (WHD)
  • 73 x 110 x 44 mm / 2.9 x 4.3 x 1.7 inch
  • Notes

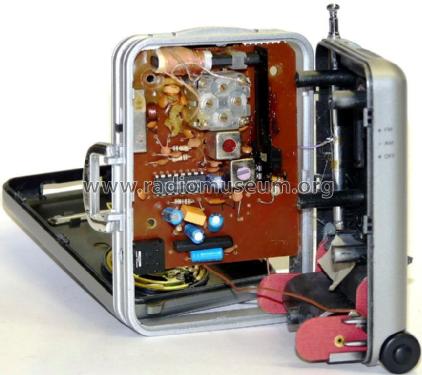

  • Reklameradio in Form eines fahrbaren Reisekoffers. Die Lautstärke wird durch hochziehen/niederdrücken des Koffer-Tragegriffes geregelt. Frequenzbereiche: UKW: 88...108 MHz; MW: 540...1600 kHz. Betrieb mit 2 IC's TA2003P & UTC7368.
  • Net weight (2.2 lb = 1 kg)
  • 0.150 kg / 0 lb 5.3 oz (0.33 lb)
