Mouse FM Scan Radio

Unknown - CUSTOM BUILT: China

Datos
Foro
Imágenes
Colecciones

  • Año
  • 2000 ??
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 367815

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • FLL, Frequency-locked loop (not PLL)
  • Gama de ondas
  • Solamente FM
  • Especialidades
  • Scanner - broadcast only (+FM)
  • Tensión de funcionamiento

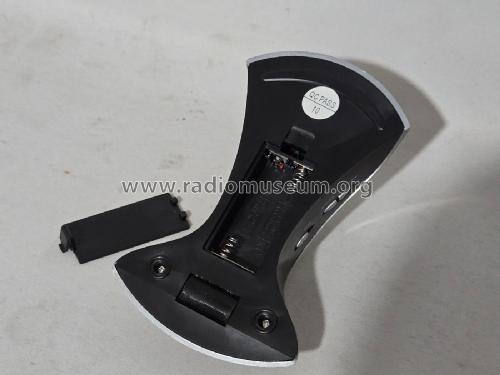

  • Pilas / AAA: 2 x 1.5 Volt
  • Altavoz
  • Altavoz dinámico (de imán permanente) / Ø 3 cm = 1.2 inch
  • Material
  • Plástico moderno (Nunca bakelita o catalina)
  • de Radiomuseum.org
  • Modelo: Mouse FM Scan Radio - Unknown - CUSTOM BUILT: China
  • Forma
  • Radio de diseño, novedosa, aparato de capricho, o de forma rara.
  • Ancho, altura, profundidad
  • 80 x 45 x 130 mm / 3.1 x 1.8 x 5.1 inch
  • Anotaciones

  • This device is an example of a novelty portable FM receiver, popular in the late 1990s and early 2000s for its distinctive "computer mouse" inspired ergonomic silhouette.

    Design & Construction

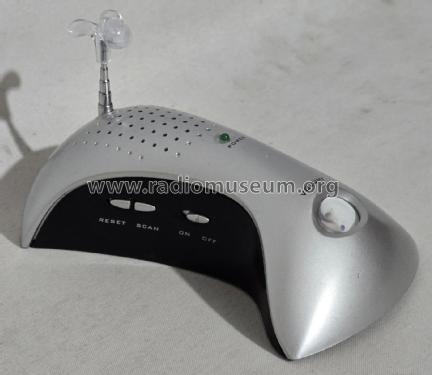

    • Housing: The chassis is constructed from injection-molded ABS plastic with a metallic silver finish. It features a high-arched, curved profile designed to mimic a peripheral device.
    • Acoustics: The top surface integrates a perforated circular grille, housing a small internal permanent magnet dynamic speaker.
    • Antenna System: It utilizes a top-mounted, clear acrylic "flower" or "propeller" head attached to a multi-section telescopic mast for VHF signal reception.

    Controls & Interface

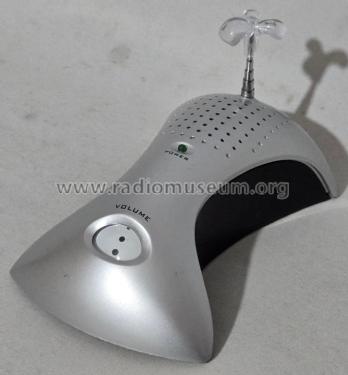

    • Volume Adjustment: A prominent circular thumbwheel/potentiometer is located at the lower front of the device for power switching and analog gain control.
    • Status Indicator: A single green LED provides visual confirmation of the power state.
    • Tuning Mechanism: Uses an auto-scan functionality for frequency selection across the standard FM band.
  • Peso neto
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Autor
  • Modelo creado por Francisco Martins. Ver en "Modificar Ficha" los participantes posteriores.
