Analizador Electrónico - Signal Tracer - Valgifson T-4

Radio Watt (Valgifson); Barcelona

  • Year
  • 1956 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 205351

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Analizador Electrónico - Signal Tracer - Valgifson T-4 - Radio Watt Valgifson;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 290 x 225 x 160 mm / 11.4 x 8.9 x 6.3 inch
  • Notes
  • Valgifson (Radio Watt), Analizador Electrónico T-4

    Rastreador de señales B.F. y A.F., buscador de ruido, ojo mágico control visual.

    PVP 2.775 pesetas más 685 pesetas por la sonda exploradora (con la EF93), total 3.440 pesetas (1 € = 166,86 pesetas)

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 3,440.00 ESP
  • Source of data
  • - - Data from my own collection
  • Mentioned in

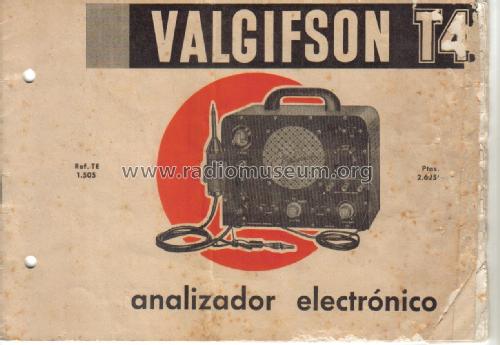

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.
