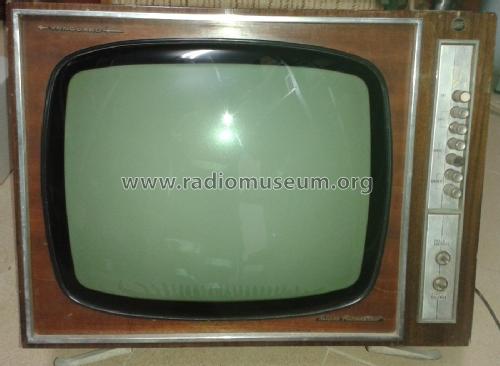

Vanguard; Hospitalet: 196 [Television] ID = 2337409 1400x1026
Select picture or schematic to display from thumbnails on the right and click for download.
For model 196, Vanguard; Hospitalet de Llobregat

Country:  Spain
Manufacturer / Brand:  Vanguard; Hospitalet de Llobregat
alternative name

Cahué Industrial
Year: 1964 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC189 PCF801 EF183 EF183 EF184 PCL84 PCF80 PCF80 EF184 EABC80 EL84 ECH84 PCL85 ECC82 ECH84 PL500 PY88 DY87 19AMP4
Semiconductors (the count is only for transistors) 2: AF139 GM0290 OA70 OA210
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 196 - Vanguard; Hospitalet de
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

TRC 23 ".

VHF-UHF con módulo Selector Pulsel SE-R24T-P103.
