• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196545

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

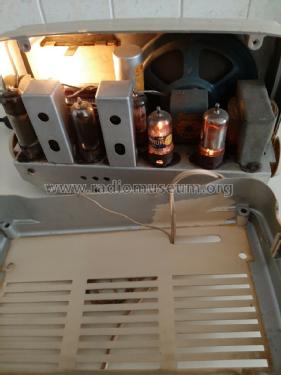

• UCH41 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

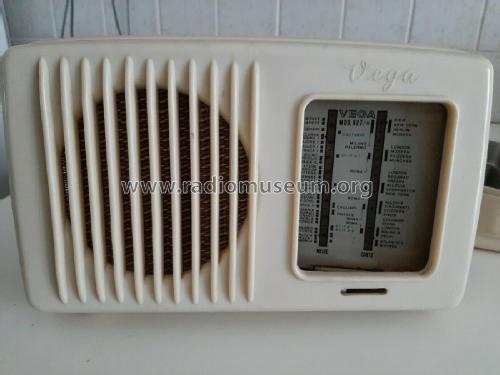

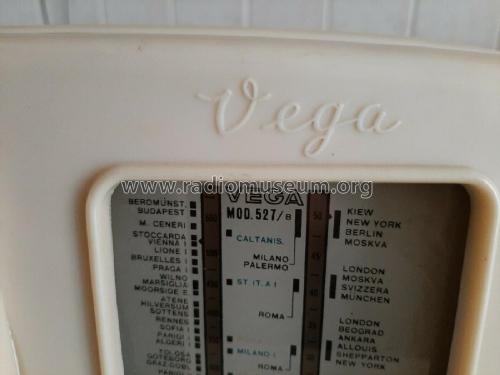

• Model: 527/B - Vega, BP Radio, Brionvega,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
