• Country
• Italy

• Manufacturer / Brand
• Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104669

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 UCH81 UABC80 UF89 DM70 UL84

• Number of Transistors

• Semiconductors
• E220C85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

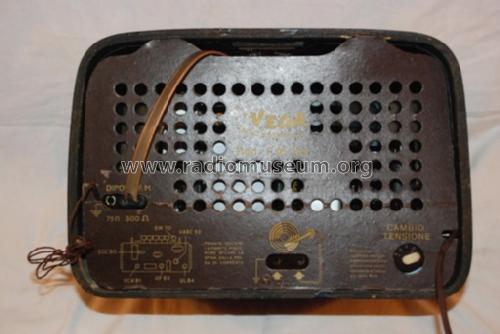

• Model: FM108 - Vega, BP Radio, Brionvega,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 300 x 215 x 190 mm / 11.8 x 8.5 x 7.5 inch

• Notes
• Serie ANIE MF.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
