Velora 64B ver 1
Velo; Barendrecht
- Country
- Netherlands
- Manufacturer / Brand
- Velo; Barendrecht
- Year
- 1949 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207567

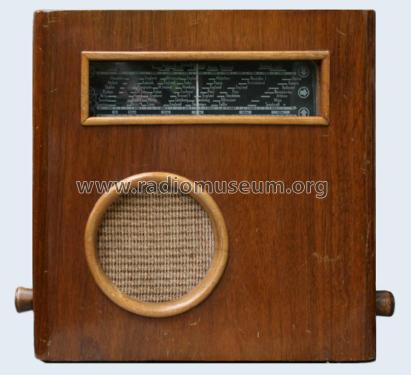

Courtesy by Frans Driesens.
Courtesy by Frans Driesens.
Courtesy by Frans Driesens.
Courtesy by Frans Driesens.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 125; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Velora 64B [ver 1] - Velo; Barendrecht
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 265 x 265 x 150 mm / 10.4 x 10.4 x 5.9 inch
- Notes
- This model uses the Philips 209U-05 chassis.
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Radio Historisch Tijdschrift, December 2011
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
