Diadal R846

Diadal R846; Videoton; (ID = 227385) Radio
Diadal R846; Videoton; (ID = 204504) Radio Diadal R846; Videoton; (ID = 2334669) Radio

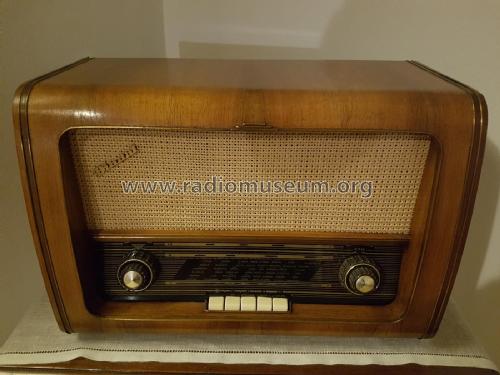

Diadal R846; Videoton; (ID = 2334670) Radio Diadal R846; Videoton; (ID = 2446042) Radio
Use red slider bar for more.
Diadal R846; Videoton; (ID = 204504) Radio
Videoton;: Diadal R846 [Radio] ID = 204504 684x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diadal R846, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF85 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Diadal R846 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 350 x 250 mm / 20.1 x 13.8 x 9.8 inch
Notes KW-Bereich 6-12MHz,14-24MHz, Klangregler
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 1'770.00 HUF
Source of data Rádiókészülékek Kapcsolásai 1936-56
Literature/Schematics (4) Original prospekt.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
