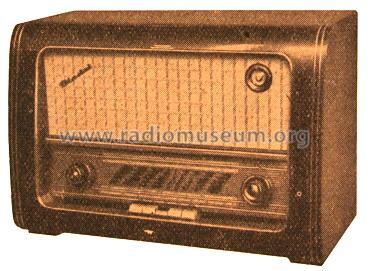

Diadal R856

Diadal R856; Videoton; (ID = 227386) Radio
Diadal R856; Videoton; (ID = 2216454) Radio Diadal R856; Videoton; (ID = 2216458) Radio
Diadal R856; Videoton; (ID = 2216456) Radio Diadal R856; Videoton; (ID = 2216452) Radio
Diadal R856; Videoton; (ID = 2543406) Radio Diadal R856; Videoton; (ID = 2543400) Radio
Diadal R856; Videoton; (ID = 2543412) Radio Diadal R856; Videoton; (ID = 2543411) Radio
Diadal R856; Videoton; (ID = 2543413) Radio Diadal R856; Videoton; (ID = 2543401) Radio
Use red slider bar for more.
Diadal R856; Videoton; (ID = 2216454) Radio
Videoton;: Diadal R856 [Radio] ID = 2216454 1400x1027
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diadal R856, Videoton; Székesfehérvár:
Perneky Sándor - Rádiómúzeum Alapítvány, Verőce, Hungary, radiomuzeum.hu

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF85 EABC80 EL84 EM4 EZ80
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Diadal R856 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 350 x 250 mm / 20.1 x 13.8 x 9.8 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 1'850.00 HUF
Source of data Rádiókészülékek Kapcsolásai 1936-56

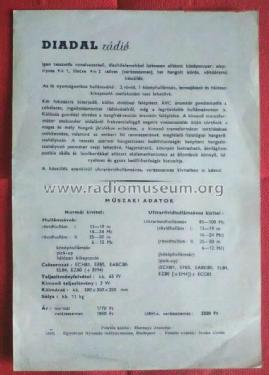

Literature/Schematics (4) Original prospekt.

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.



All listed radios etc. from Videoton; Székesfehérvár
Here you find 673 models, 629 with images and 176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
