Szimfonia Telepes B858

Szimfonia Telepes B858; Videoton; (ID = 420932) Radio

Szimfonia Telepes B858; Videoton; (ID = 420933) Radio

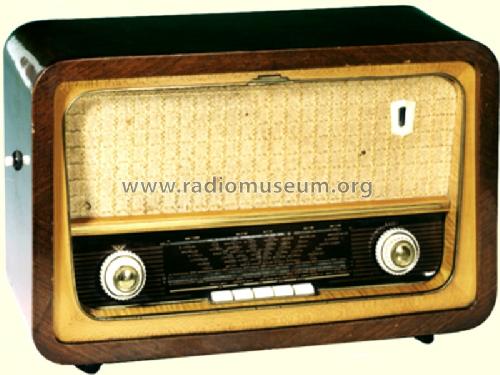

Szimfonia Telepes B858; Videoton; (ID = 396803) Radio Szimfonia Telepes B858; Videoton; (ID = 475068) Radio
Szimfonia Telepes B858; Videoton; (ID = 1583712) Radio Szimfonia Telepes B858; Videoton; (ID = 1985487) Radio
Szimfonia Telepes B858; Videoton; (ID = 1985488) Radio Szimfonia Telepes B858; Videoton; (ID = 1985489) Radio
Szimfonia Telepes B858; Videoton; (ID = 1985490) Radio Szimfonia Telepes B858; Videoton; (ID = 1985491) Radio
Use red slider bar for more.
Szimfonia Telepes B858; Videoton; (ID = 396803) Radio
Videoton;: Szimfonia Telepes B858 [Radio] ID = 396803 600x436
Select picture or schematic to display from thumbnails on the right and click for download.
For model Szimfonia Telepes B858, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1R5T 1T4T 1T4T 1S5T DM70 DLL101
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 1,4 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Szimfonia Telepes B858 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 330 x 210 mm / 19.7 x 13 x 8.3 inch
Notes Skalenbeleuchtung nur mit Netzadapter. Externer Netzadapter steckbar 220 V. KW-Bereich 5,8-16 MHz.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data Radio es Televizio Vevö Keszülekek, 1958-59

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
