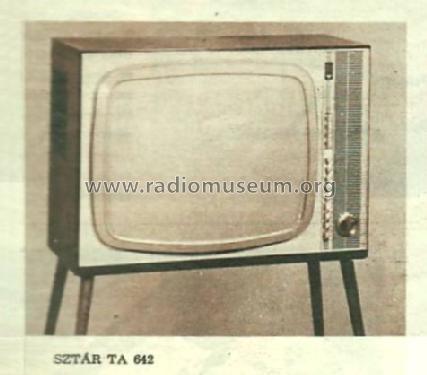

Sztár TA642

Sztár TA642; Videoton; (ID = 1464648) Television

Sztár TA642; Videoton; (ID = 1464649) Television

Sztár TA642; Videoton; (ID = 1464651) Television

Sztár TA642; Videoton; (ID = 1464652) Television

Sztár TA642; Videoton; (ID = 1464653) Television

Sztár TA642; Videoton; (ID = 1464654) Television

Sztár TA642; Videoton; (ID = 1464655) Television
Sztár TA642; Videoton; (ID = 651314) Television Sztár TA642; Videoton; (ID = 1592451) Television
Sztár TA642; Videoton; (ID = 1592456) Television
Use red slider bar for more.
Sztár TA642; Videoton; (ID = 651314) Television
Videoton;: Sztár TA642 [Television] ID = 651314 433x313
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sztár TA642, Videoton; Székesfehérvár:
Radio es TVkeszulekek, 1964-66, Kadar G. 1967

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCC189 PCF80 EF183 EF184 PCF82 EF80 ECH84 ECH84 PCL84 PCL85 PCL86 PL500 PY88 DY86 AW59-91
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers / Ø 15 cm = 5.9 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Sztár TA642 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 700 x 500 x 360 mm / 27.6 x 19.7 x 14.2 inch
Notes VHF-UHF OIRT, Speaker: 150×100 mm and 100 mm. Picture tube:59 cm.
Net weight (2.2 lb = 1 kg) 33 kg / 72 lb 11 oz (72.687 lb)
Source of data Radio es Televizio Vevö keszülekek 1964-66

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
