• Country
• Great Britain (UK)

• Manufacturer / Brand
• Vidor Ltd.; Erith (Kent)

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99297

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 or DK91 1T4 or DF91 1S5 or DAF91 3V4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 90 & 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

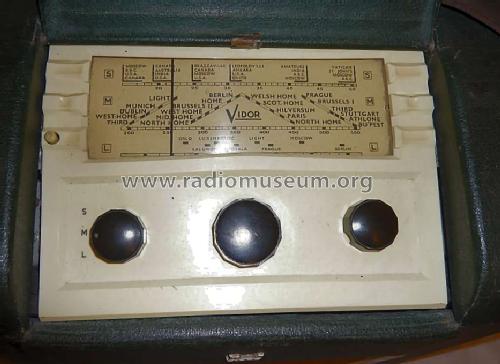

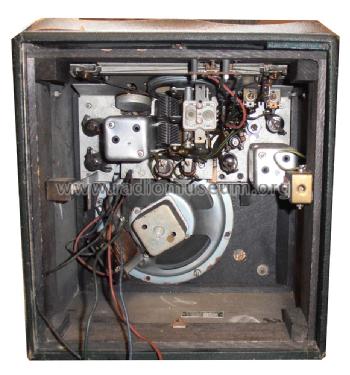

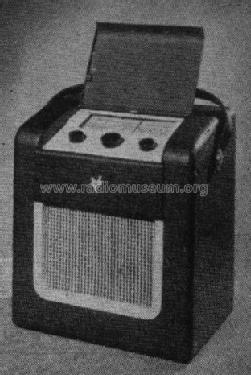

• Model: Riviera CN379 - Vidor Ltd.; Erith Kent

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• This is the domestic  version of the CN380 and differs only in scale markings. If it has UK domestic stations it's a CN379 or CN392.

  The CN392 is also the same, but showing "Copenhagen plan" station wavelengths.

  From 1950 the DL94 is used instead of  3V4, early models may use all Brimar / US designation types and later models the Dx9x types.

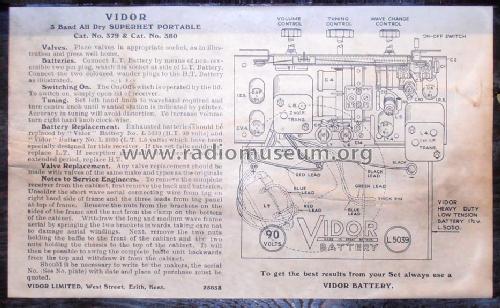

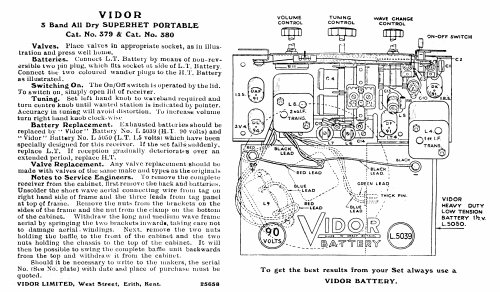

  The actual model (CN379 or CN380) is stamped on metal badge on inside of base rather than the paper valve / battery label.

  LT: Vidor L5050, (= Ever Ready AD34)

  HT: Vidor L5039 (= Ever Ready Portable 61)

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
