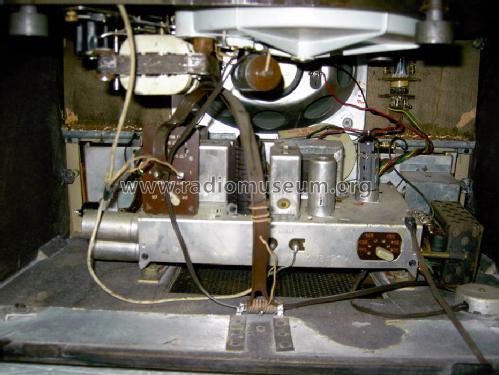

VL3022; Visiola di Dequarti (ID = 523860) Radio VL3022; Visiola di Dequarti (ID = 523861) Radio
VL3022; Visiola di Dequarti (ID = 523862) Radio
Use red slider bar for more.
VL3022; Visiola di Dequarti (ID = 523860) Radio
Visiola di Dequarti: VL3022 [Radio] ID = 523860 933x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model VL3022, Visiola di Dequarti P. & C.; Roma:
Foto per cortesia di E.Pollice

Country:  Italy
Manufacturer / Brand:  Visiola di Dequarti P. & C.; Roma
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6T26 12E4 50RP1 6TD32 EM81 35F6
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: VL3022 - Visiola di Dequarti P. & C.;
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes

See also Magnadyne model MD6022 which shares the same chassis.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
