VR6

VR6; Visiola di Dequarti (ID = 1078091) Radio
Use red slider bar for more.
VR6; Visiola di Dequarti (ID = 1078091) Radio

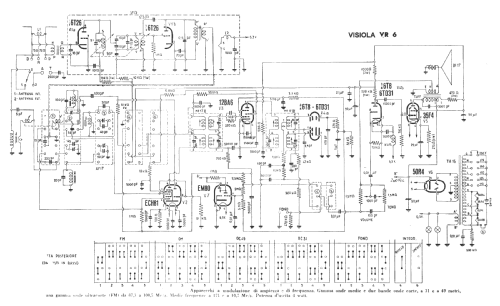

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Visiola di Dequarti P. & C.; Roma
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6T26 ECH81 12BA6 6T8 or 6TD31 EM80 35F4 50R4
Main principle Superheterodyne (common); ZF/IF 471/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: VR6 - Visiola di Dequarti P. & C.;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 330 x 210 mm / 20.5 x 13 x 8.3 inch
Notes

Serie ANIE MF. Altoparlante ellittico tipo DI17.

Price in first year of sale 42'000.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) D. E. Ravalico, Il Radiolibro, 17ª edizione, 1960

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Visiola di Dequarti P. & C.; Roma
Here you find 23 models, 6 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
