VR7

VR7; Visiola di Dequarti (ID = 781355) Radio VR7; Visiola di Dequarti (ID = 781356) Radio
VR7; Visiola di Dequarti (ID = 2543549) Radio
Use red slider bar for more.
VR7; Visiola di Dequarti (ID = 781355) Radio

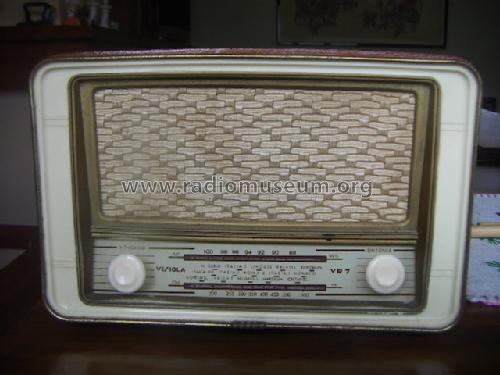

Visiola di Dequarti: VR7 [Radio] ID = 781355 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model VR7, Visiola di Dequarti P. & C.; Roma

Country:  Italy
Manufacturer / Brand:  Visiola di Dequarti P. & C.; Roma
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6T26 50R4 25E2 12P1 6TD32 35F6
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: VR7 - Visiola di Dequarti P. & C.;
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 180 x 150 mm / 10.6 x 7.1 x 5.9 inch
Price in first year of sale 29'000.00 ITL
Mentioned in -- Original prospect or advert

Model page created by Alessandro Arrigoni. See "Data change" for further contributors.



All listed radios etc. from Visiola di Dequarti P. & C.; Roma
Here you find 23 models, 6 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
