Nipper 524 UCH81

Nipper 524; La Voce del Padrone; (ID = 53115) Radio Nipper 524; La Voce del Padrone; (ID = 731467) Radio
Nipper 524; La Voce del Padrone; (ID = 1622450) Radio Nipper 524; La Voce del Padrone; (ID = 1622451) Radio
Use red slider bar for more.

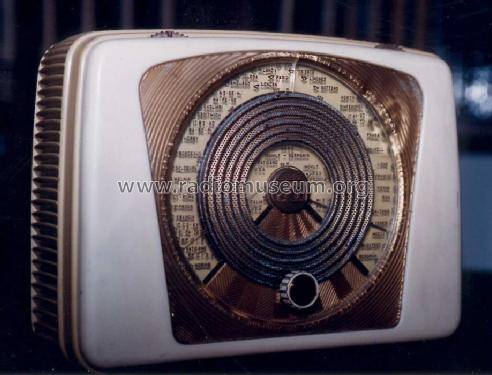

Nipper 524; La Voce del Padrone; (ID = 53115) Radio
La Voce del Padrone;: Nipper 524 [Radio] ID = 53115 920x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nipper 524 UCH81, La Voce del Padrone; Milano

Country:  Italy
Manufacturer / Brand:  La Voce del Padrone; Milano
Year: 1955–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Nipper 524 [UCH81] - La Voce del Padrone; Milano
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 185 x 100 mm / 9.4 x 7.3 x 3.9 inch
Notes Serie ANIE. Variante con UCH42. Wurde vorwiegend mit UCH42 bestückt. Siehe Variante.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 26'900.00 ITL
External source of data Eigenes Gerät/Schemario degli apparecchi radio
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1956-57)

Model page created by Volker Jeschkeit. See "Data change" for further contributors.
