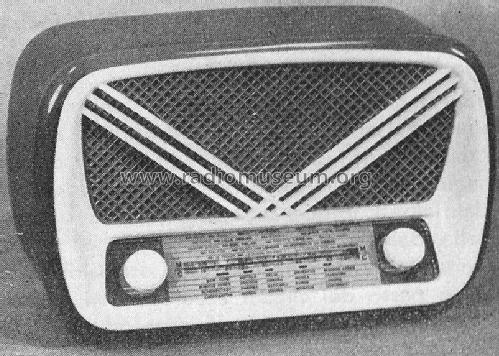

Cosetta
Vorax Radio; Milano
- Country
- Italy
- Manufacturer / Brand
- Vorax Radio; Milano
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 181871
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Cosetta - Vorax Radio; Milano
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 260 x 165 x 130 mm / 10.2 x 6.5 x 5.1 inch
- Notes
- Venduto in scatola di montaggio. Alimentazione ad autotrasformatore.
- Literature/Schematics (1)
- D.E. Ravalico, Radio Elementi, VI Edizione, Hoepli, 1960
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
