Autotrans 801

Autotrans 801; Voxson F.A.R.E.T., (ID = 650769) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669686) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669687) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669688) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669689) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669690) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669691) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669692) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669693) Car Radio

Autotrans 801; Voxson F.A.R.E.T., (ID = 669694) Car Radio
Autotrans 801; Voxson F.A.R.E.T., (ID = 1429786) Car Radio Autotrans 801; Voxson F.A.R.E.T., (ID = 1429785) Car Radio
Autotrans 801; Voxson F.A.R.E.T., (ID = 1429787) Car Radio Autotrans 801; Voxson F.A.R.E.T., (ID = 1429788) Car Radio
Autotrans 801; Voxson F.A.R.E.T., (ID = 1429789) Car Radio Autotrans 801; Voxson F.A.R.E.T., (ID = 1429790) Car Radio
Autotrans 801; Voxson F.A.R.E.T., (ID = 1429791) Car Radio Autotrans 801; Voxson F.A.R.E.T., (ID = 1429792) Car Radio
Autotrans 801; Voxson F.A.R.E.T., (ID = 2142184) Car Radio Autotrans 801; Voxson F.A.R.E.T., (ID = 2145788) Car Radio
Use red slider bar for more.
Autotrans 801; Voxson F.A.R.E.T., (ID = 1429786) Car Radio
Voxson F.A.R.E.T.,: Autotrans 801 [Car Radio] ID = 1429786 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autotrans 801, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1960/1961 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 5: OC170 OC170 OC169 2N591 or. OC75 2N376 OA79 OA90 OA90 OA90
Main principle Superhet with RF-stage; ZF/IF 265 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Autotrans 801 - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 220 x 56 x 175 mm / 8.7 x 2.2 x 6.9 inch
Notes

Gamma delle onde medie da 520 a 1600 kHz

Commutatore per funzionamento con positivo o negativo a massa.

Net weight (2.2 lb = 1 kg) 2.650 kg / 5 lb 13.4 oz (5.837 lb)
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) -- Original-techn. papers.

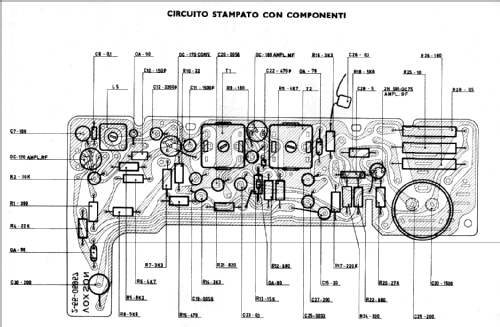

Literature/Schematics (2) -- Schematic (Apparecchi Radio a Transistor, D.E. Ravalico - Hoepli)

Model page created by Giorgio Costa. See "Data change" for further contributors.
