Autotrans Super 802P

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667232) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667233) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667234) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667235) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667236) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667237) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667238) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667239) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667240) Car Radio

Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 667241) Car Radio
Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000247) Car Radio Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000248) Car Radio
Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000249) Car Radio Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000251) Car Radio
Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000252) Car Radio Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000253) Car Radio
Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2145796) Car Radio
Use red slider bar for more.
Autotrans Super 802P; Voxson F.A.R.E.T., (ID = 2000247) Car Radio
Voxson F.A.R.E.T.,: Autotrans Super 802P [Car Radio] ID = 2000247 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Autotrans Super 802P, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1963/1964 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: AF116 AF116 AF117 OC75 OC74 2N376 2N376 OA81 OA79
Main principle Superheterodyne (common); ZF/IF 265 kHz
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Autotrans Super 802P - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 156 x 69 x 190 mm / 6.1 x 2.7 x 7.5 inch
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Source of data Guida Pratica Antique Radio III (2000)

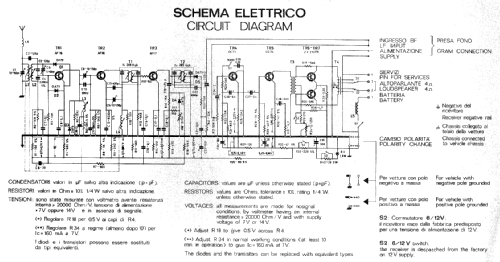

Literature/Schematics (1) -- Schematic

Model page created by Giorgio Costa. See "Data change" for further contributors.



All listed radios etc. from Voxson F.A.R.E.T., Roma
Here you find 147 models, 122 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
