GN 7121 OM-FMS

GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126677) Car Radio GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126675) Car Radio
GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126676) Car Radio GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126678) Car Radio
GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126679) Car Radio GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126680) Car Radio
GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126681) Car Radio GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126682) Car Radio
Use red slider bar for more.

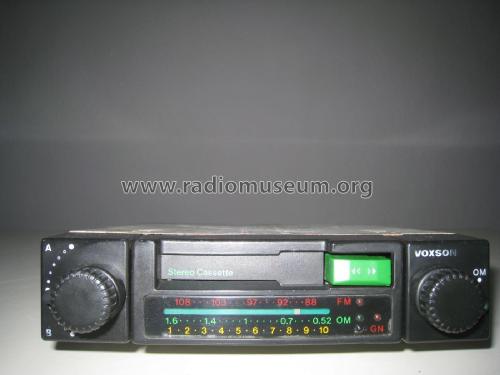

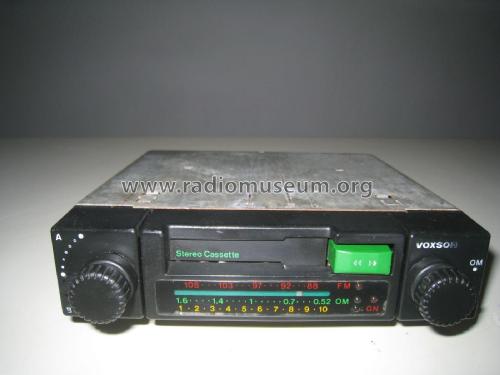

GN 7121 OM-FMS; Voxson F.A.R.E.T., (ID = 2126677) Car Radio
Voxson F.A.R.E.T.,: GN 7121 OM-FMS [Car Radio] ID = 2126677 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model GN 7121 OM-FMS, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1978 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: GN 7121 OM-FMS - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 38 x 177 mm / 6.9 x 1.5 x 7 inch
Notes

VOXSON F.A.R.E.T., Roma - mod. GN 7121 OM/FMS Stereo 7 Cassette: volume/tone/balance control,  MW/FM switch, play/stop/ff.ww/rew keys, LED indicators FM/MW/GN, frequency band MW: 520/1600 kHz, FM: 87,5/108 MHz, output power 7 + 7 W max, loudspeaker impedance 4 Ω.



Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
