Harvey 619; Voxson F.A.R.E.T., (ID = 2433535) Radio

Voxson F.A.R.E.T.,: Harvey 619 [Radio] ID = 2433535 1345x798

Select picture or schematic to display from thumbnails on the right and click for download.

For model Harvey 619, Voxson F.A.R.E.T., Roma

Country:

Italy

Manufacturer / Brand:

Voxson F.A.R.E.T., Roma

Year: 1956/1957

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

4: DK96 DF96 DAF96 DL96

Main principle	to an article Superheterodyne (common); ZF/IF 455 kHz
Wave bands	Broadcast only (MW).
Details
Power type and voltage	Line / Batteries (any type) / 110 DC / 110-220 AC / 3 + 67,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out	0.2 W (unknown quality)
from Radiomuseum.org	Model: Harvey 619 - Voxson F.A.R.E.T., Roma
Material	Plastics (no bakelite or catalin)
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	185 x 110 x 75 mm / 7.3 x 4.3 x 3 inch
Net weight (2.2 lb = 1 kg)	1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale	23'800.00 ITL
Source of data	Guida Pratica Antique Radio (1) 1999
Mentioned in	Catalogo ANIE (1956-57)
Literature/Schematics (1)	-- Schematic (Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.

All listed radios etc. from Voxson F.A.R.E.T., Roma
Here you find 147 models, 122 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Edoardo Sigismondo (I)

Collection of Antonio Varrica (I)

Collection of Antonio Maida (I)

Collection of Pierfausto Bonomi (I)

Collection of Leonardo Mureddu (I)

Collection of Enrico Puccini (I)

Forum contributions about this model

Voxson F.A.R.E.T.,: Harvey 619

Threads: 1 | Posts: 1

Hits: 1914 Replies: 0

voxson: 619; Harvey

Antonio Maida
05.Feb.08

voxson: 619; Harvey

Il ricevitore poteva essere alimentato a corrente di rete o a pile. Mentre tutti gli altri portatili avevano le pile all'interno e l'alimentatore esterno, l'Harvey contiene all'interno un alimentatore per c.a., mentre le pile sono alloggiate in un contenitore (stesso colore della radio) alloggiato in una borsa di cuoio, da portare a tracolla. il costo, all'epoca, dell'accessorio era di 8.000 lire.

Le connessioni con le pile avvengono automaticamente poggiando il ricevitore sulla base. Questa soluzione aveva il vantaggio di separare la radio dalle pile, evitando il danneggiamento in caso fuoruscita dell'acido per le pile scariche

Attachments

harvey 1 (75 KB)
harvey 2 (96 KB)
harvey 3 (65 KB)

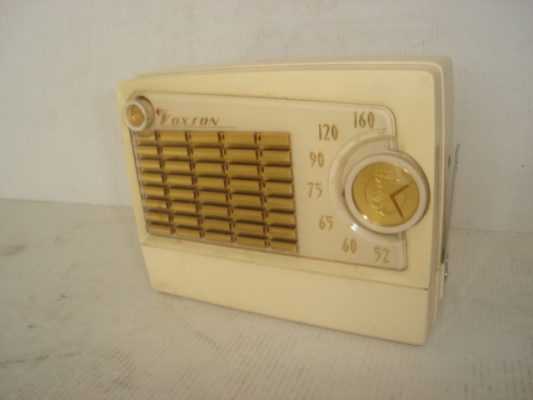

harley 4 (65 KB)
harvey 5 (80 KB)
