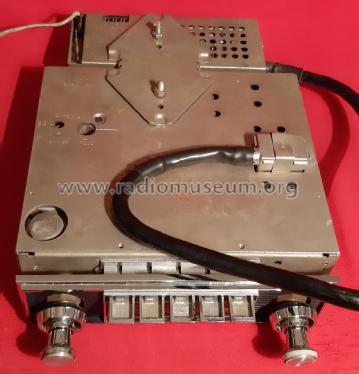

Indianapolis 923; Voxson F.A.R.E.T., (ID = 2633232) Car Radio Indianapolis 923; Voxson F.A.R.E.T., (ID = 2633233) Car Radio
Use red slider bar for more.
Indianapolis 923; Voxson F.A.R.E.T., (ID = 2633231) Car Radio
Voxson F.A.R.E.T.,: Indianapolis 923 [Car Radio] ID = 2633231 1400x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model Indianapolis 923, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1966 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 16: AF106 AF115 AF115 AF121 AF116 AF121 AF116 AF116 AF116 SE4002 OC72 AC126 AC128 2N376 2N376 2N555 BA102 OA79 OA81
Main principle Superheterodyne (common)
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Indianapolis 923 - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 187.5 x 57 x 225 mm / 7.4 x 2.2 x 8.9 inch
Notes

5 Fixsender, automatischer Suchlauf, Variometer.

Dioden sind einmal pro Typ gelistet.

Source of data -- Collector info (Sammler)
Literature/Schematics (1) Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.67, June-July 2005, page 10)

Model page created by Urs Gloor. See "Data change" for further contributors.
