Junior 902; Voxson F.A.R.E.T., (ID = 2633791) Car Radio
Voxson F.A.R.E.T.,: Junior 902 [Car Radio] ID = 2633791 1400x1050

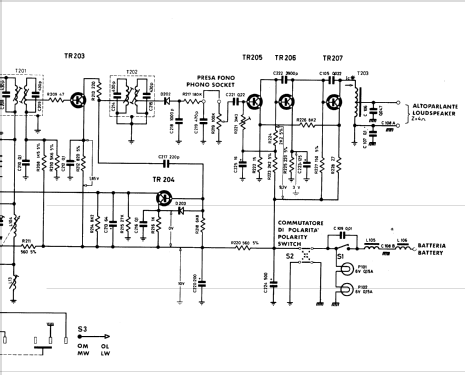

Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior 902, Voxson F.A.R.E.T., Roma:

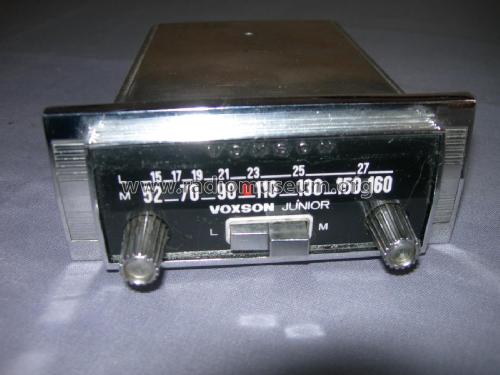

car radio della mia collezione

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1968 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7:
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Junior 902 - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 115 x 47 x 155 mm / 4.5 x 1.9 x 6.1 inch
Notes Variometer. Altoparlante ellittico da 4 Ohm
Source of data -- Collector info (Sammler)
Literature/Schematics (1) Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

Model page created by Urs Gloor. See "Data change" for further contributors.



All listed radios etc. from Voxson F.A.R.E.T., Roma
Here you find 147 models, 122 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
