Las Vegas 8168/V

Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290981) Car Radio Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290977) Car Radio
Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290978) Car Radio Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290980) Car Radio

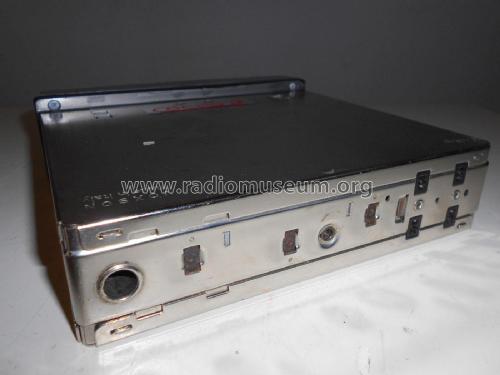

Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290982) Car Radio Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290983) Car Radio
Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290984) Car Radio
Use red slider bar for more.
Las Vegas 8168/V; Voxson F.A.R.E.T., (ID = 2290981) Car Radio
Voxson F.A.R.E.T.,: Las Vegas 8168/V [Car Radio] ID = 2290981 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Las Vegas 8168/V, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1988 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Las Vegas 8168/V - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 42 x 182 mm / 6.9 x 1.7 x 7.2 inch
Notes

controllo volume/tono/bilanciamento - potenza d'uscita: 7 + 7 watt max. - impedenza altoparlanti: 4/8 Ω - commutatore mono/stereo - commutatore AM/FM - commutatore FE/Cr-Metal - riproduttore di cassette stereo 7 - autoreverse . tasti play/eject/dir/ff.ww./rew. - led rosso ricezione stereo -  led verdi direzionali. Negativo a massa.

Plancia estraibile amplificata mod. FA H42 (20 + 20 watt). Impedenza altoparlanti 4 Ω. Possibilità di collegamento n. 4 altoparlanti (front/rear).

Made in Italy.

Net weight (2.2 lb = 1 kg) 2.850 kg / 6 lb 4.4 oz (6.278 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
