Magic 750

Magic 750; Voxson F.A.R.E.T., (ID = 650279) Radio

Magic 750; Voxson F.A.R.E.T., (ID = 650284) Radio
Magic 750; Voxson F.A.R.E.T., (ID = 2433843) Radio Magic 750; Voxson F.A.R.E.T., (ID = 2433848) Radio
Magic 750; Voxson F.A.R.E.T., (ID = 2433844) Radio Magic 750; Voxson F.A.R.E.T., (ID = 2433846) Radio
Magic 750; Voxson F.A.R.E.T., (ID = 2433842) Radio Magic 750; Voxson F.A.R.E.T., (ID = 2433847) Radio
Magic 750; Voxson F.A.R.E.T., (ID = 1367418) Radio Magic 750; Voxson F.A.R.E.T., (ID = 725616) Radio
Magic 750; Voxson F.A.R.E.T., (ID = 725618) Radio Magic 750; Voxson F.A.R.E.T., (ID = 650277) Radio
Use red slider bar for more.
Magic 750; Voxson F.A.R.E.T., (ID = 2433843) Radio

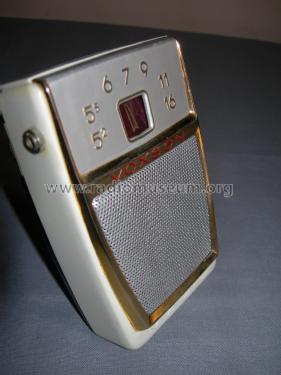

Voxson F.A.R.E.T.,: Magic 750 [Radio] ID = 2433843 1400x1866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magic 750, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: OC170 OC169 OC75 OC72 OC72
Main principle Superheterodyne (common); ZF/IF 458 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Magic 750 - Voxson F.A.R.E.T., Roma
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 114 x 35 mm / 3 x 4.5 x 1.4 inch
Notes Gamma onde medie da 522-1600 kHz
2 diodi al germanio OA90
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Schematic
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 119, maggio-giugno 2014)
Documents regarding this model
  Voxson Magic 750; ARM 119 (Gentile concessione L.Salvatore/ARM) 5156 KB
  Voxson 750 Magic (by courtesy of L.Salvatore and R.Davidson) 5253 KB

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
