• Year
  • 1971 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 82859

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 6 W (max.)
  • Material

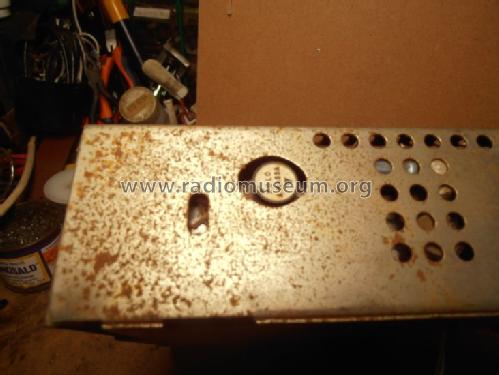

  • Metal case
  • from Radiomuseum.org
  • Model: Monthlery 912 - Voxson, FARET F.A.R.E.T.; Roma
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 187.5 x 53 x 161 mm / 7.4 x 2.1 x 6.3 inch
  • Notes
  • Radioricevitore con Onde Medie e Onde Lunghe. 5 pulsanti per preimpostare 5 emittenti. Sintonia ad induttori variabili.
    Presa per convertitore per Onde Corte, per giradischi o registratore.
    Possibilità di funzionare con positivo o negativo a massa, con commutazione dall'esterno.
    La potenza massima di 6 Watt si ottiene con alimentazione a 14 V.

    5 Fixsender, Variometer.

  • Literature/Schematics (2)
  • -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
