Monza MW + FM

Monza; Voxson F.A.R.E.T., (ID = 2154313) Car Radio Monza; Voxson F.A.R.E.T., (ID = 2154312) Car Radio
Monza; Voxson F.A.R.E.T., (ID = 2154315) Car Radio Monza; Voxson F.A.R.E.T., (ID = 2154317) Car Radio
Monza; Voxson F.A.R.E.T., (ID = 2154318) Car Radio Monza; Voxson F.A.R.E.T., (ID = 2154320) Car Radio
Use red slider bar for more.

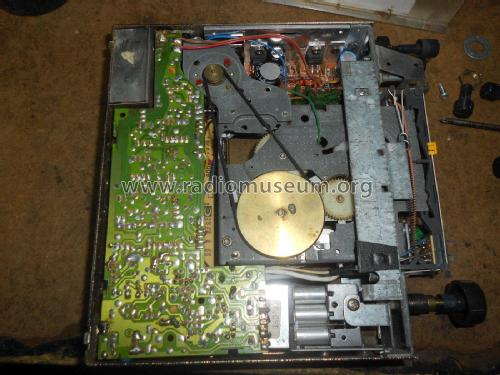

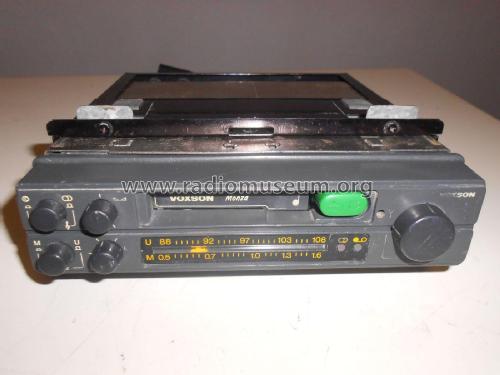

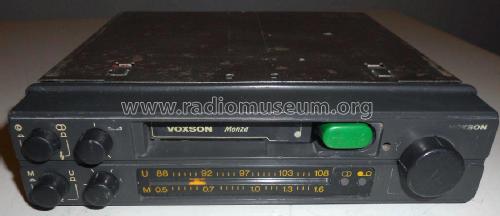

Monza; Voxson F.A.R.E.T., (ID = 2154313) Car Radio
Voxson F.A.R.E.T.,: Monza [Car Radio] ID = 2154313 1379x598
Select picture or schematic to display from thumbnails on the right and click for download.
For model Monza MW + FM, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1978 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage and/or dry batteries / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Monza [MW + FM] - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 40 x 180 mm / 6.9 x 1.6 x 7.1 inch
Notes

VOXSON mod. Monza - controllo volume/bilanciamento/tono - commutatore mono/stereo - commutatore FM/MW - led rosso ricezione FM stereo - led verde tape - tasti play/rew/ff.ww. - trimmer regolazione antenna frontale - frequency range: FM 87,5/108 MHz - MW 530/1602 kHz - potenza uscita: 6+6 watt Max. - impedenza; 4/8 Ω - montaggio su plancia estraibile.

Made in Italy.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
