Monza 921

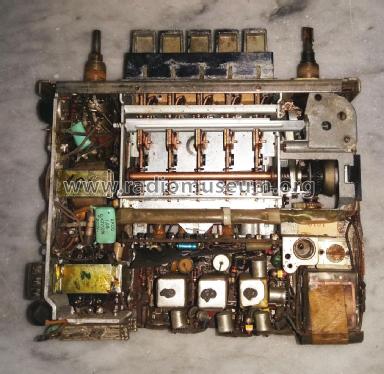

Monza 921; Voxson F.A.R.E.T., (ID = 1063301) Car Radio
Use red slider bar for more.
Monza 921; Voxson F.A.R.E.T., (ID = 1063301) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1973 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 12: AF116 AF116 AF116 AF116 AF116 AF116 SE4002 OC72 AC126 AC128 2N376 2N376
Main principle Superhet with RF-stage
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Monza 921 - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 187.5 x 53 x 161 mm / 7.4 x 2.1 x 6.3 inch
Notes

Sintonia ad induttori variabili. Controllo di tono. Sintonia automatica motorizzata con avvio manuale. Positivo o negativo a massa. Controllo di selettività a 3 posizioni.

5 Fixsender; automatischer Suchlauf; Variometer.

Source of data -- Collector info (Sammler)
Literature/Schematics (1) Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

Model page created by Urs Gloor. See "Data change" for further contributors.
