Sebring 70 3101/C

Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1099408) Car Radio
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1398806) Car Radio Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214196) Car Radio
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1404433) Car Radio Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214191) Car Radio
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214185) Car Radio Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214188) Car Radio
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214187) Car Radio Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1214190) Car Radio
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1404430) Car Radio Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1404431) Car Radio
Use red slider bar for more.
Sebring 70 3101/C; Voxson F.A.R.E.T., (ID = 1398806) Car Radio
Voxson F.A.R.E.T.,: Sebring 70 3101/C [Car Radio] ID = 1398806 639x480

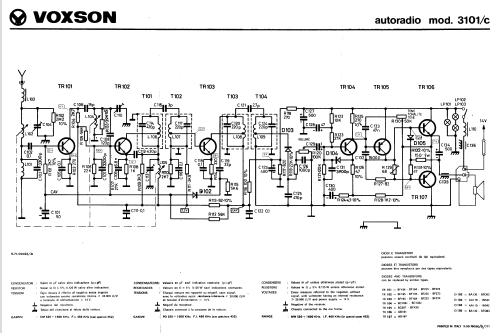

Select picture or schematic to display from thumbnails on the right and click for download.
For model Sebring 70 3101/C, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1978 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Sebring 70 3101/C - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Notes Serie 3000.

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Voxson F.A.R.E.T., Roma
Here you find 147 models, 122 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
