Sonar Stereo 8 GN108

Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947012) Car Radio Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1841239) Car Radio
Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1841234) Car Radio Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947011) Car Radio
Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947013) Car Radio Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947015) Car Radio
Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947016) Car Radio
Use red slider bar for more.

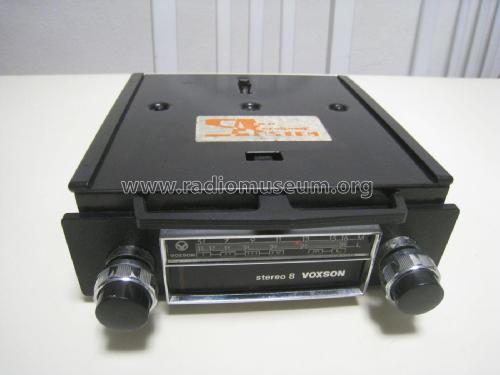

Sonar Stereo 8 GN108; Voxson F.A.R.E.T., (ID = 1947012) Car Radio
Voxson F.A.R.E.T.,: Sonar Stereo 8 GN108 [Car Radio] ID = 1947012 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonar Stereo 8 GN108, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 27:
Main principle Superhet with RF-stage
Wave bands Broadcast (MW) and Long Wave.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (7 W max.)
from Radiomuseum.org Model: Sonar Stereo 8 GN108 - Voxson F.A.R.E.T., Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 55 x 190 mm / 7.1 x 2.2 x 7.5 inch
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Mauro Emilio Gino Bellini. See "Data change" for further contributors.
