Starlet 506

Starlet 506; Voxson F.A.R.E.T., (ID = 947650) Radio

Starlet 506; Voxson F.A.R.E.T., (ID = 2470071) Radio

Starlet 506; Voxson F.A.R.E.T., (ID = 2470072) Radio

Starlet 506; Voxson F.A.R.E.T., (ID = 2470073) Radio
Starlet 506; Voxson F.A.R.E.T., (ID = 2433520) Radio Starlet 506; Voxson F.A.R.E.T., (ID = 2433521) Radio
Starlet 506; Voxson F.A.R.E.T., (ID = 2433522) Radio Starlet 506; Voxson F.A.R.E.T., (ID = 2433523) Radio
Starlet 506; Voxson F.A.R.E.T., (ID = 317780) Radio Starlet 506; Voxson F.A.R.E.T., (ID = 317782) Radio
Starlet 506; Voxson F.A.R.E.T., (ID = 317783) Radio Starlet 506; Voxson F.A.R.E.T., (ID = 317784) Radio
Use red slider bar for more.
Starlet 506; Voxson F.A.R.E.T., (ID = 2433520) Radio
Voxson F.A.R.E.T.,: Starlet 506 [Radio] ID = 2433520 1320x963
Select picture or schematic to display from thumbnails on the right and click for download.
For model Starlet 506, Voxson F.A.R.E.T., Roma

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1954–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1V6 1AH4 1AJ5 DL92
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 1,5 & 45 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Starlet 506 - Voxson F.A.R.E.T., Roma
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 165 x 103 x 50 mm / 6.5 x 4.1 x 2 inch
Notes La borsa in cuoio contiene nella parte inferiore un alimentatore per tensione di rete da 110 a 220 volt.
110-220V power supply embedded in leather carrying bag.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 42'000.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (1956-57)
Literature/Schematics (1) Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

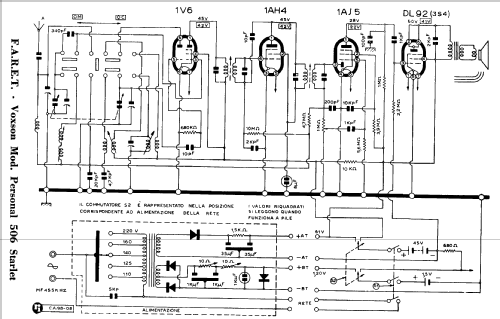

Literature/Schematics (2) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Antonio Maida. See "Data change" for further contributors.
