• Country
• Italy

• Manufacturer / Brand
• Voxson, FARET (F.A.R.E.T.); Roma

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119318

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / (AC 110-220 / DC 110) / 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

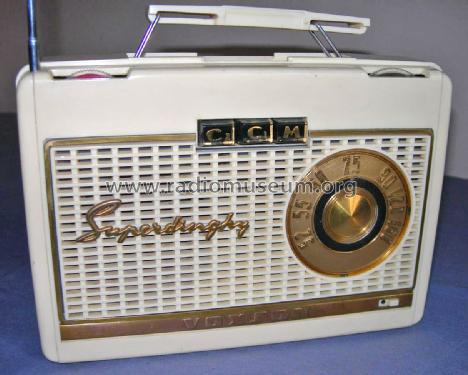

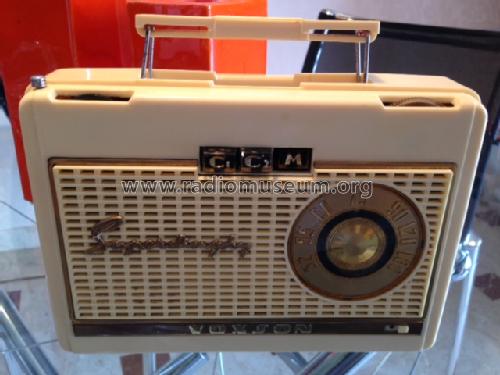

• Model: Superdinghy 614 - Voxson, FARET F.A.R.E.T.; Roma

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 220 x 160 x 66 mm / 8.7 x 6.3 x 2.6 inch

• Notes

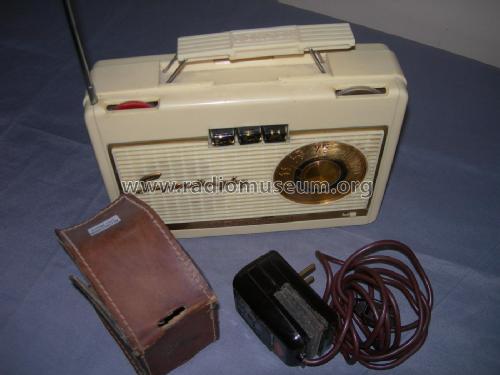

• Alimentatore esterno per funzionamento a rete.
  External power supply for mains operation.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 38,800.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• -- Schematic (Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.)

• Literature/Schematics (2)
• -- Original prospect or advert (Voxson, Listino prezzi Novembre 1956)

• Literature/Schematics (3)
• Scuola Radio Elettra, Corso Radio Stereo, 1964/65 Schemario/Abaco.

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
