• Year
  • 1970
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 116715

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

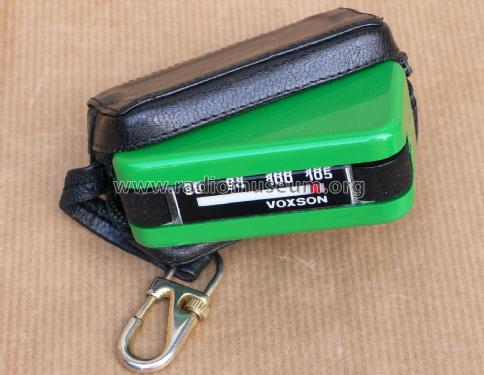

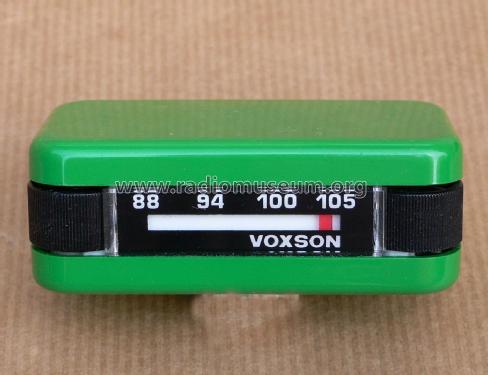

  • Model: Tanga FM - Voxson, FARET F.A.R.E.T.; Roma
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 70 x 40 x 25 mm / 2.8 x 1.6 x 1 inch
  • Notes
  • Autoradio di minime dimensioni, da utilizzare anche in casa su apposito supporto alimentato a 220 Volt.
    Miniature car radio, which can be connected to 220V mains with power supply.
  • Mentioned in
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.
  • Author
  • Model page created by Antonio Maida. See "Data change" for further contributors.
