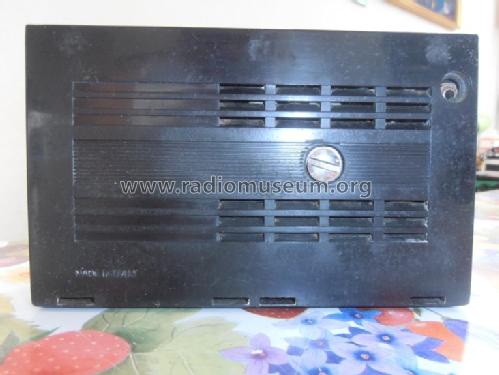

Zephyr 3 752; Voxson F.A.R.E.T., (ID = 413915) Radio
Voxson F.A.R.E.T.,: Zephyr 3 752 [Radio] ID = 413915 816x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zephyr 3 752, Voxson F.A.R.E.T., Roma:
Vista frontale

Country:  Italy
Manufacturer / Brand:  Voxson F.A.R.E.T., Roma
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC75 OC72 OC72 OA90 OA90
Main principle Superheterodyne (common); ZF/IF 460 kHz; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 120-220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Zephyr 3 752 - Voxson F.A.R.E.T., Roma
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 160 x 100 x 40 mm / 6.3 x 3.9 x 1.6 inch
Notes Funzionante come portatile con 6 pile da 1,5 Volt (AA) o con alimentatore da rete (tipo A 745) o con alimentazione da batteria auto (12 V) attraverso supporto S 745 con eventuale amplificatore BF e Altoparlante supplementare tipo B 745.
Mentioned in - - Data from my own collection
Literature/Schematics (1) Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian.

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
