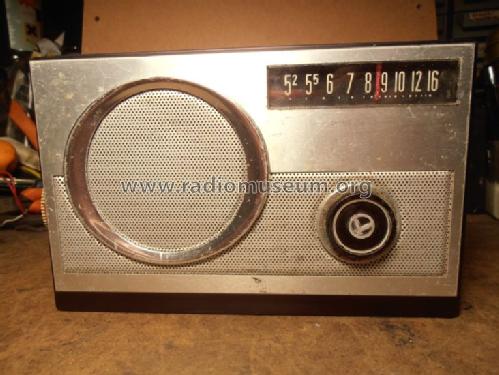

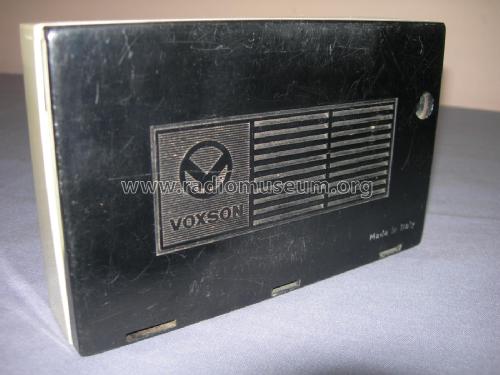

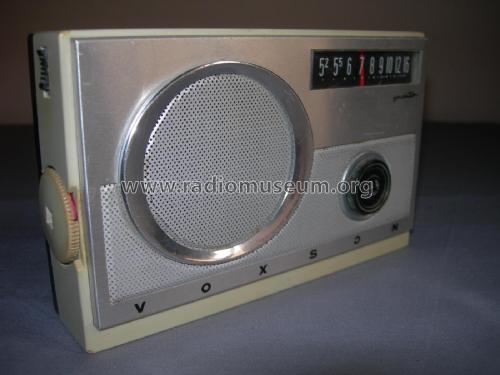

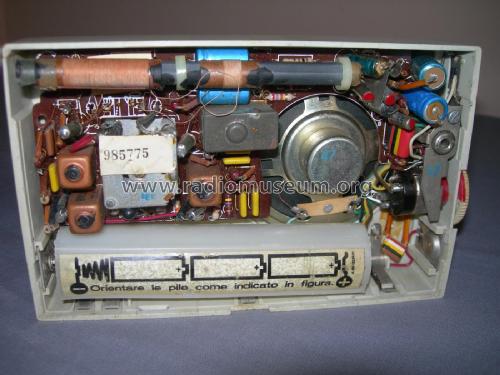

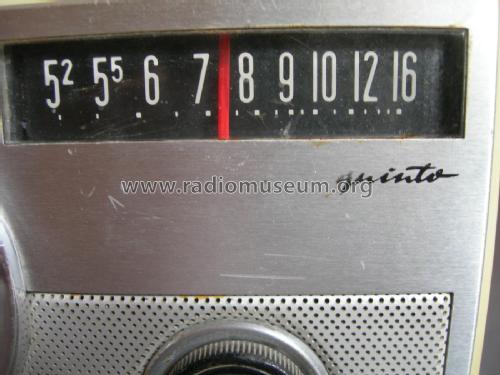

Zephyr 5 (quinto) 765
Voxson F.A.R.E.T.,: Zephyr 5 765 [Radio] ID = 2433903 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1967 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: SFT317 SFT319 SFT319 SFT377 SFT353 SFT325 SFT377 SFD106 |
|---|
| Main principle | Superheterodyne (common); 3 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 3 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch |
| Power out | 0.3 W (unknown quality) |
| from Radiomuseum.org | Model: Zephyr 5 765 - Voxson F.A.R.E.T., Roma |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 166 x 105 x 40 mm / 6.5 x 4.1 x 1.6 inch |
| Notes | La confezione con cui era venduto comprendeva: 3 batterie "C" - Auricolare anatomico - Supporto S 765 per fissare l'apparecchio all'auto, che permetteva di illuminare la scala parlante - Alimentatore A 765 per corrente alternata: 110, 125, 140, 160 ,220 V - Custodia per il trasporto. It was endowed with one adaptor for working at home (220V AC) and another one for working inside a car (12V DC). |
| Net weight (2.2 lb = 1 kg) | 0.5 kg / 1 lb 1.6 oz (1.101 lb) |

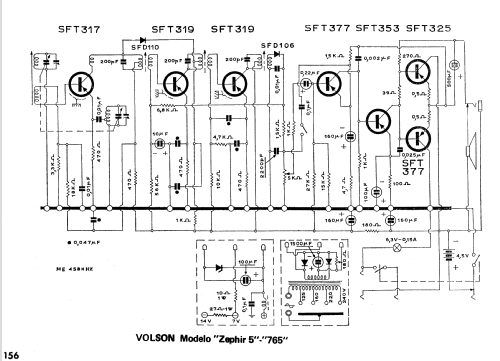

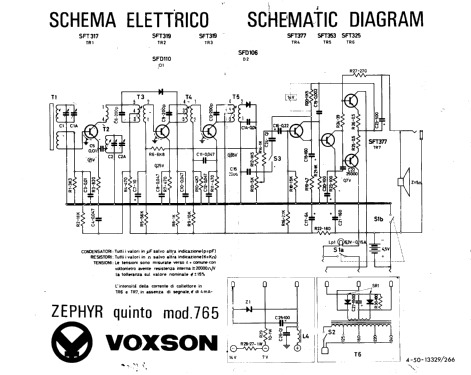

| Literature/Schematics (1) | Antique Radio Magazine n.67, June-July 2005, page 10. Written in Italian. |
| Literature/Schematics (2) | -- Original prospect or advert (Domenica del Corriere, 1968) |
Model page created by Aldo Andreani. See "Data change" for further contributors.
