- Country
- Netherlands
- Manufacturer / Brand
- Waldorp, N.V. Ned. Instrumentenfabriek, Den Haag
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84185
Bild aus Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

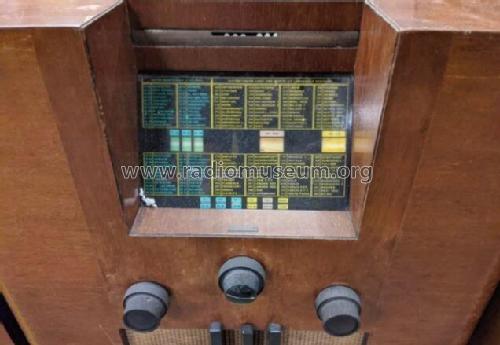

- Model: 693 - Waldorp, N.V. Ned.
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- Glimm-Abstimmanzeiger.
- Price in first year of sale
- 250.00 FL
- Mentioned in
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
