• Country
• Germany

• Manufacturer / Brand
• Waldschmidt Apparatebau, Dr. Mallach, Kappeln a.d. Schlei (Schleswig)

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17583

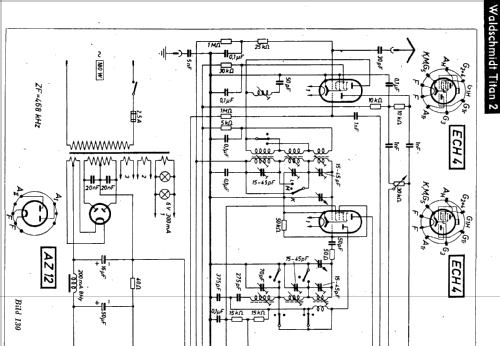

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECH4 ECH4 ECH4 EBL1 EFM11 EF6 AL4 AD1 AD1 AZ12

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Titan 2 - Waldschmidt Apparatebau, Dr.

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1500 x 1100 x 550 mm / 59.1 x 43.3 x 21.7 inch

• Notes

• [FT4812]

  3 Lautsprecher 10, 19 und 25 cm Durchmesser.

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Radio-Mentor (4808)

• Literature/Schematics (1)
• Funk-Technik (FT) (4/1949, S. 113, 114 / Bericht, Daten und Schema)

• Other Models

• Here you find 4 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Waldschmidt Apparatebau, Dr. Mallach, Kappeln a.d. Schlei (Schleswig)
